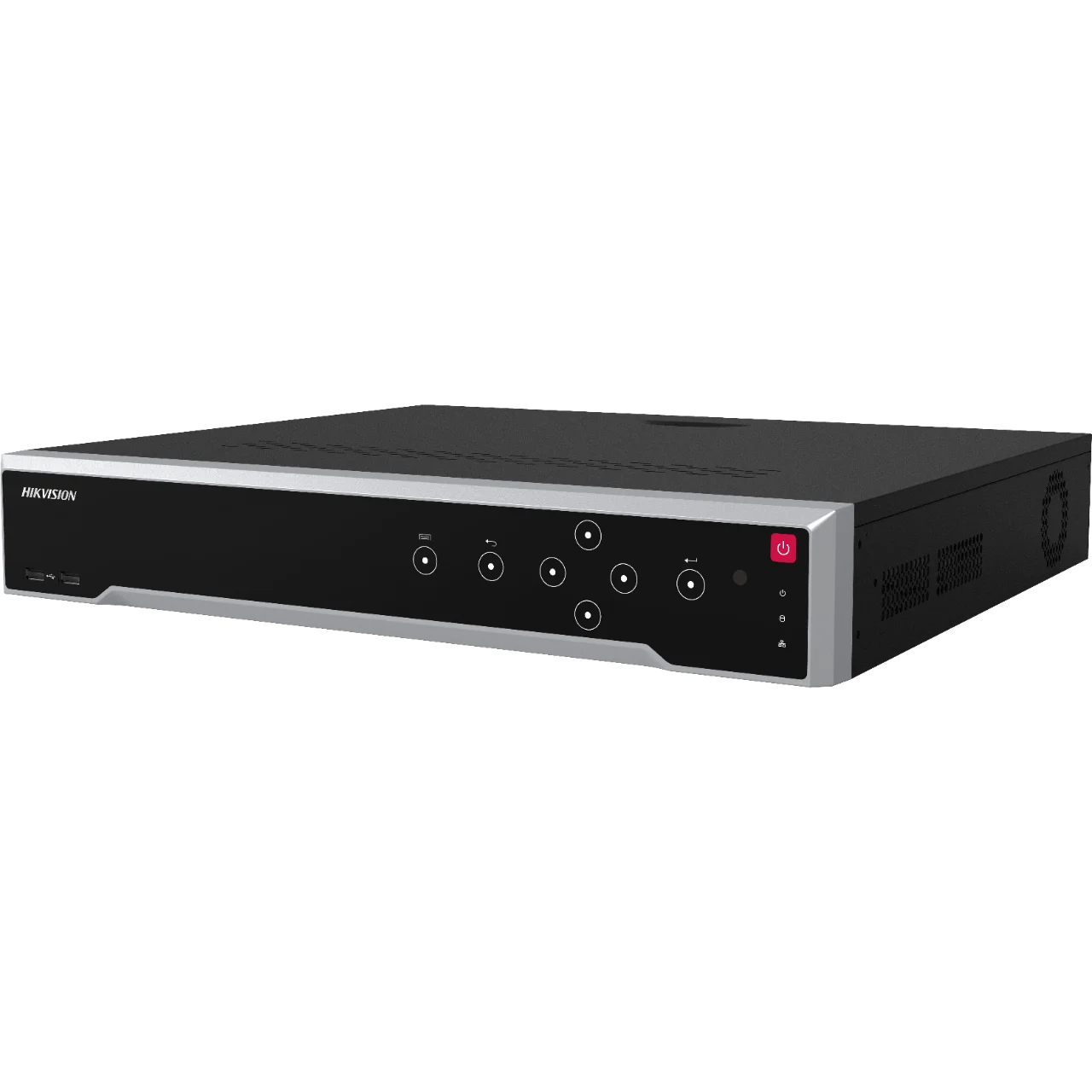

Product Model: DS-7732NI-I4
32-ch 1.5U 4K NVR
- Up to 32 channel IP cameras can be connected
- Up to 1-ch@32 MP/2-ch@12 MP/16-ch@1080p decoding capacity
- Only (B) version support 2 HDMI and 1 VGA interfaces, and HDMI interfaces support independent video output
- 4 HDDs for continuous video recording
- Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
- Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
- Supports dual-stream recording to save time and bandwidth.
- Video And Audio
- IP Video Input: Up to 12 MP resolution *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-7732NI-I4(B), when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch.
- Incoming Bandwidth: 256 Mbps
- Outgoing Bandwidth: 256 Mbps
- HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
- Decoding
- Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4
- Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-7732NI-I4(B), when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch.
- Synchronous Playback: 16-ch
- Decoding Capability: 1-ch@32 MP (30 fps)/2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
- Dual-Stream Recording: Support
- Stream Type: Video, Video & Audio
- Audio Compression: G.711ulaw/ G.711alaw /G.722/G.726
- Network
- Remote Connection: 128
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- Auxiliary Interface
- Serial Interface: 1 RS-485 (half-duplex), 1 RS-232
- SATA: 4 SATA interfaces
- ESATA: N/A (1 eSATA interface is optional)
- Capacity: Up to 10 TB capacity for each HDD
- Alarm In/Out: 16/4 (16/8 is optional)
- USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- General
- Power Supply: 100 to 240 VAC, 50 to 60 Hz
- Consumption: ≤ 20 W (without HDD)
- Working Temperature: -10 to +55º C (+14 to +131º F)
- Working Humidity: 10 to 90 %
- Chassis: 19-inch rack-mounted 1.5U chassis
- Dimension (W × D × H): 445 × 400 × 75 mm ( 17.5″× 15.7″ × 3.0″)
- ≤ 5 kg (11 lb.)
- Certification
- FCC: Part 15 Subpart B, ANSI C63.4-2014
- CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Number Of Channel | 32-ch (Video Decoding Channel) |
Model Number | DS-7732NI-I4/24P |
Brand | Hikvision |
Power Supply | 100 to 240 VAC |
Working Humidity | 10-90% |
Protocols | TCP/IP, HTTPS DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SNMP, SMTP, NFS, iSCSI, UPnP |
Record Stream | Video/ Video&Audio |
