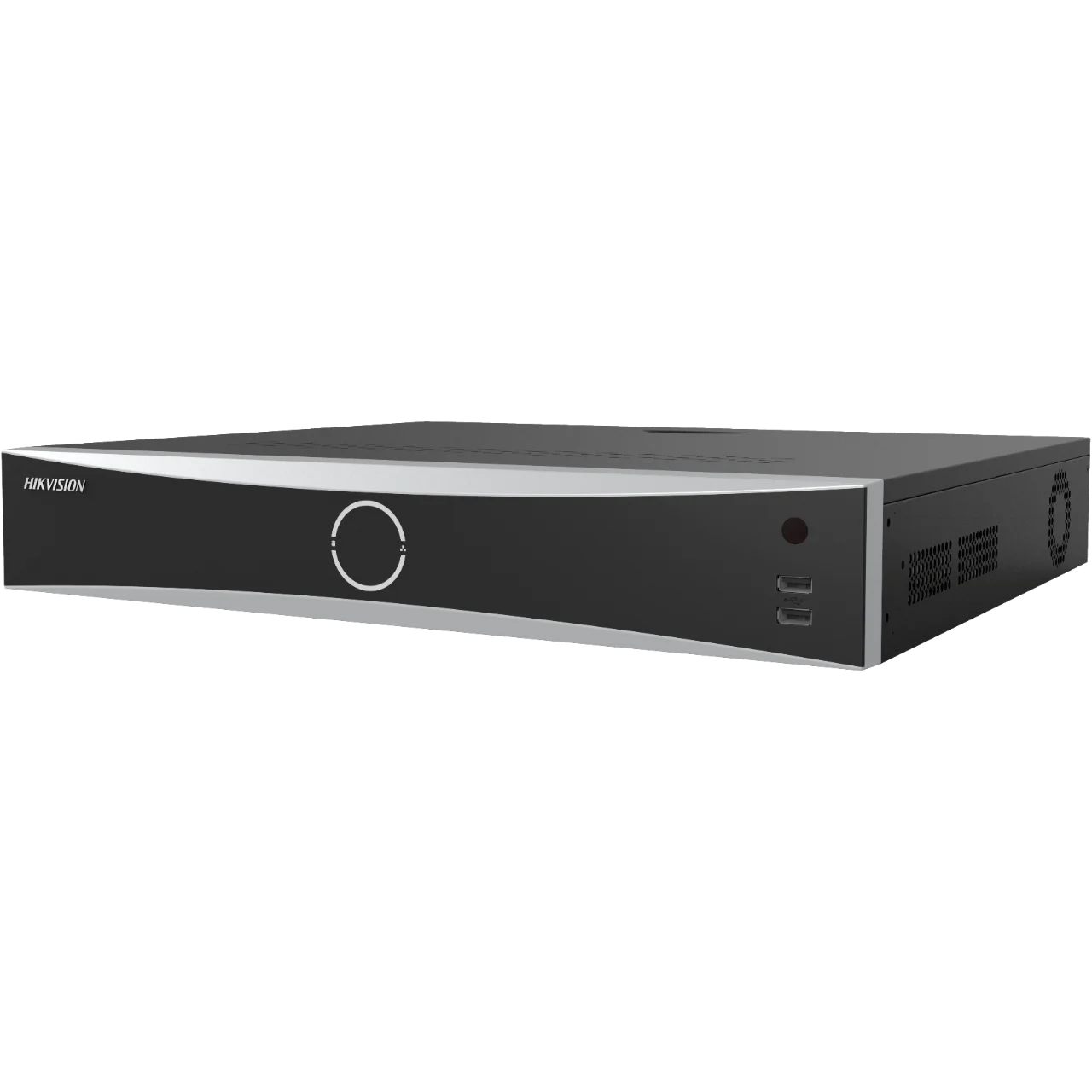

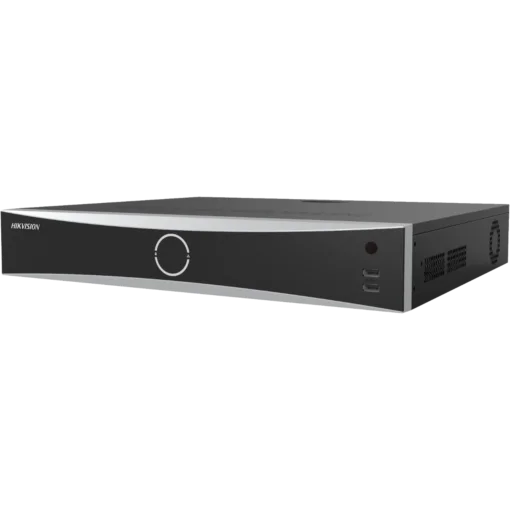

Hikvision DS-7716NXI-I4/S (16 channel NVR non poe, 4 sata slot) 4K

Product Model: DS-7716NXI-I4/S

16-ch 1.5U AcuSense 4K NVR

• H.265+/H.265/H.264+/H.264 video formats
• Intelligent analytics based on deep learning algorithm
• Up to 4-ch perimeter protection
• Up to 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture
• Up to 16-ch IP camera inputs
• Up to 16-ch 1080p decoding capability
• Up to 160 Mbps incoming bandwidth

• Facial Recognition
• Facial Detection And Analytics: Face picture comparison, human face capture, face picture search
• Face Picture Library: Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
• Face Picture Comparison: 4-ch face picture comparison alarm
• Facial Detection And Analytics Performance: 1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)

• Motion Detection 2.0
• Human/Vehicle Analysis: 16-ch

• Perimeter Protection
• Human/Vehicle Analysis: Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; Up to 12 rules in total

• Video And Audio
• IP Video Input: 16-ch Up to 12 MP resolution *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
• Incoming Bandwidth: 160 Mbps
• Outgoing Bandwidth: 256 Mbps
• HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output
• HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output
• VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output
• CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ)

• Decoding
• Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4
• Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
• Playback Mode: Normal/Smart, Event, Tag, Eternal File
• Synchronous Playback: 16-ch
• Live View Window Division: 1/2/4/6/8/9/16
• Aux Port Window Division: 1/2/4/6/8/9/16
• Decoding Capability: 16-ch @ 1080p (30 fps)
• Dual-Stream Recording: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2

• Network
• Remote Connection: 128
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• Auxiliary Interface
• Serial Interface: RS-485 (half-duplex), RS-232, Keyboard
• SATA: 4 SATA interfaces supporting hot-plug
• Capacity: Up to 10 TB capacity for each disk
• ESATA: 1 eSATA interface
• Alarm In/Out: 16/8
• USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

• General
• Power Supply: 100 to 240 VAC, 50 to 60 Hz
• Consumption: ≤ 30 W (without HDD)
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Chassis: 19-inch rack-mounted 1.5U chassis
• Dimension (W × D × H): 445 × 400 ×75 mm ( 17.5″× 15.7″ × 3.0″)
• ≤ 5.6 kg (12.3 lb)

• Certification
• FCC: Part 15 Subpart B, ANSI C63.4-2014
• CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4



Brand	Hikvision
Status	Brand New
Model Name/Number	DS-7716NXI-I4/S
Features
Type	NVR
Model Description	16 channel NVR non poe, 4 sata slot
IP Video Input	16-ch
Incoming Bandwidth	160 Mbps
Outgoing Bandwidth	256 Mbps
