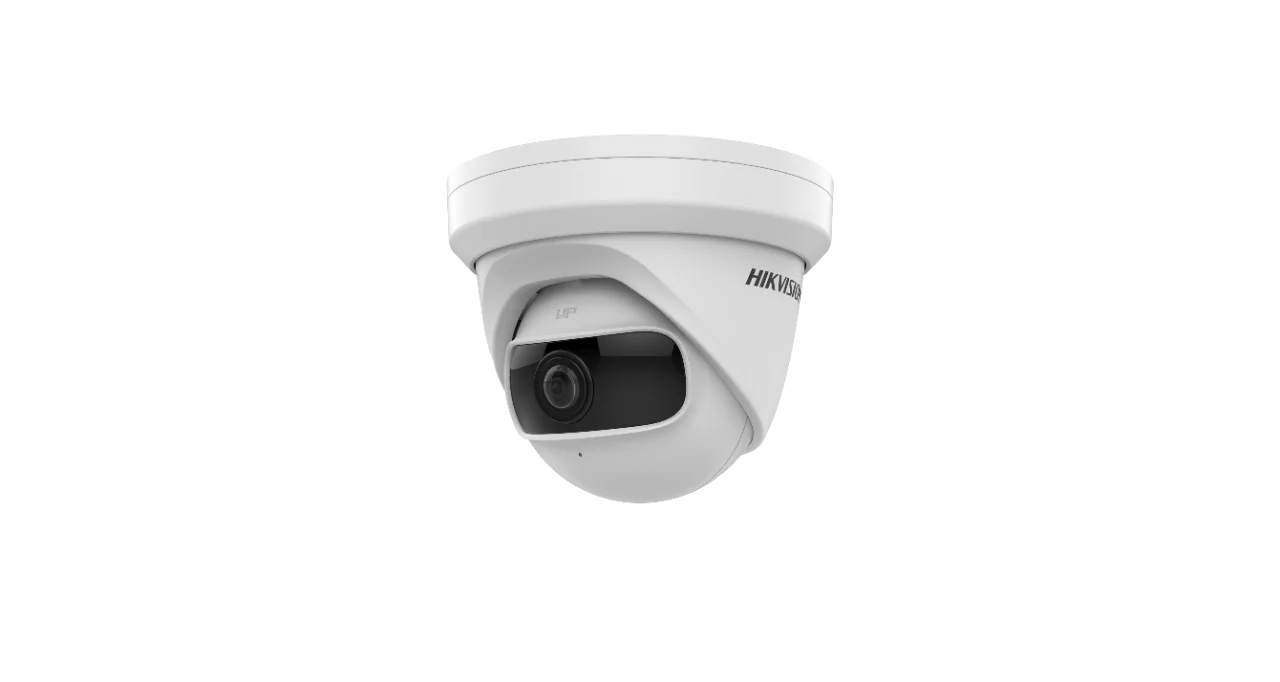

Hikvision DS-2CD2345G0P-I (4mp indoor 180 degree)

Product Model: DS-2CD2345G0P-I

4 MP Super Wide Angle Fixed Turret Network Camera

• High quality imaging with 4 MP resolution
• 180°super wide field of view
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Distortion correction
• Robust structure design with full metal materials

• Camera
• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Min. Illumination: Color: 0.028 Lux @ (F2.0, AGC ON) B&W: 0.0028 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Wide Dynamic Range: 120 dB
• Day & Night: IR Cut Filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

• Lens
• Lens Type: Fixed lens, 1.68 mm
• FOV: 1.68 mm, horizontal FOV: 180° , vertical FOV: 101° , diagonal FOV: 180°
• Aperture: F2.0
• Lens Mount: M12

• Illuminator
• IR Range: Up to 10 m
• Wavelength: 850 nm

• Video
• Max. Resolution: 2688 × 1520
• Main Stream: 50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Video Compression: Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Scalable Video Coding (SVC): H.264 and H.265 encoding support
• Region Of Interest (ROI): 1 fixed region for main stream, sub-stream and third stream
• DS-2CD2345G0P-I

• Network
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• User/Host: Up to 32 users, 3 levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Network Storage: microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
• DS-2CD2345G0P-I

• Image
• Day/Night Switch: Day/Night/Auto/Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Settings: Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser

• Interface
• On-Board Storage: Built-in micro SD slot, up to 256 GB
• Hardware Reset: Reset via reset button on camera body, web browser and client software
• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

• Event
• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event: Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection

• General
• Linkage Method: Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
• Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Storage Conditions: -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, type 1, class 3)
• Power Consumption And Current: 12 VDC, 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8W
• Camera Dimension: Camera: Φ 127.3 × 104.1 mm (Φ 5″ × 4.1″) With package: 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)
• Camera Weight: Camera: Approx. 520 g (1.1 lb.) With package: Approx. 700 g (1.5 lb.)

• Approval
• EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
