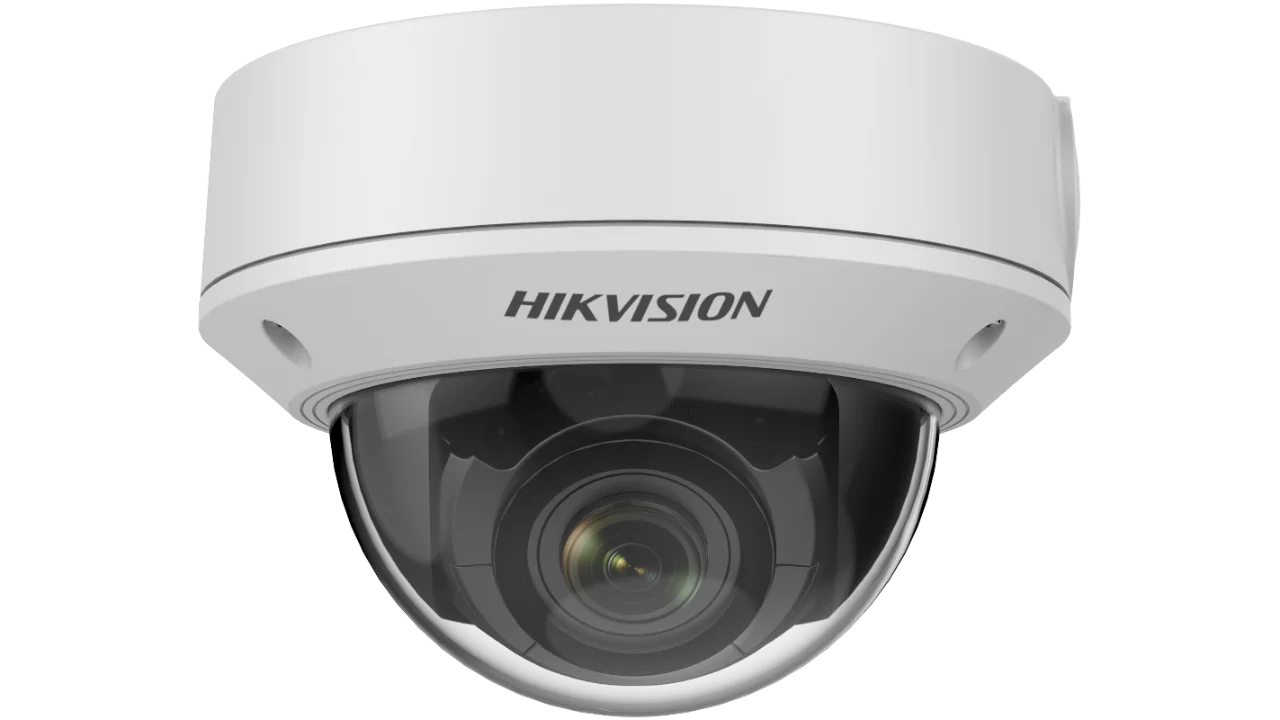

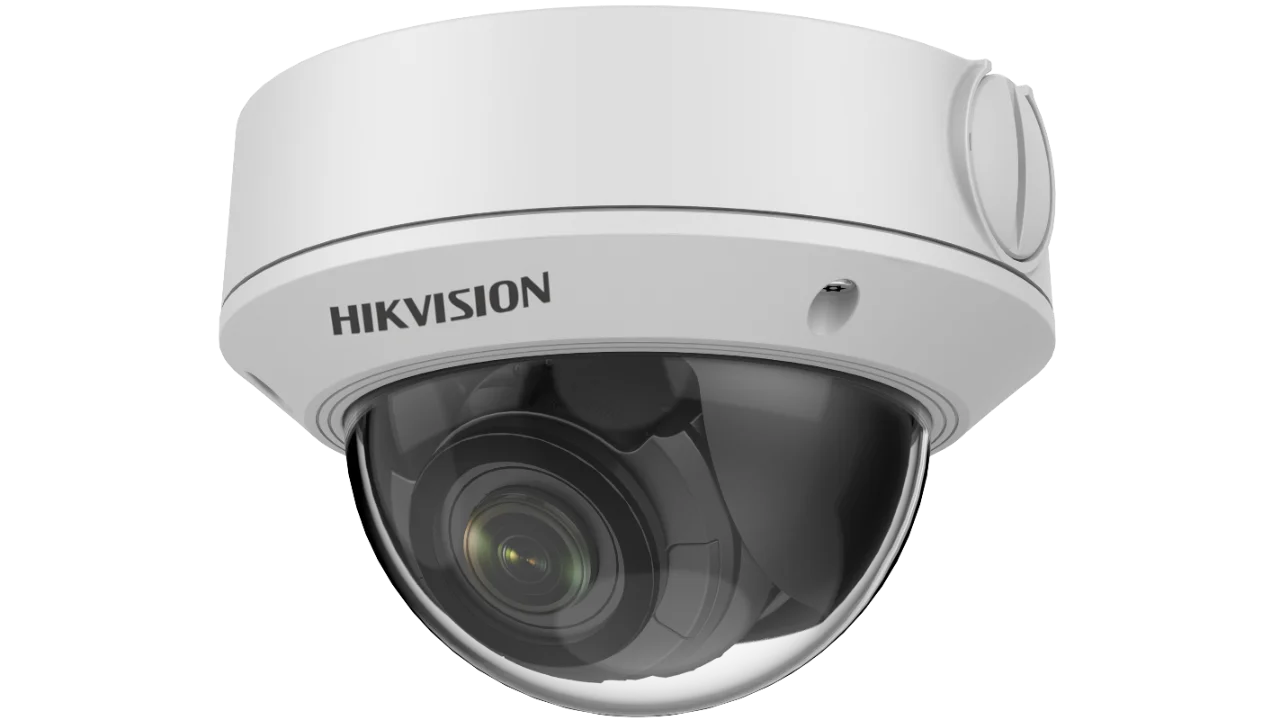

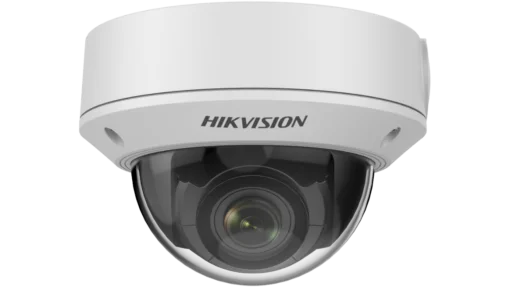

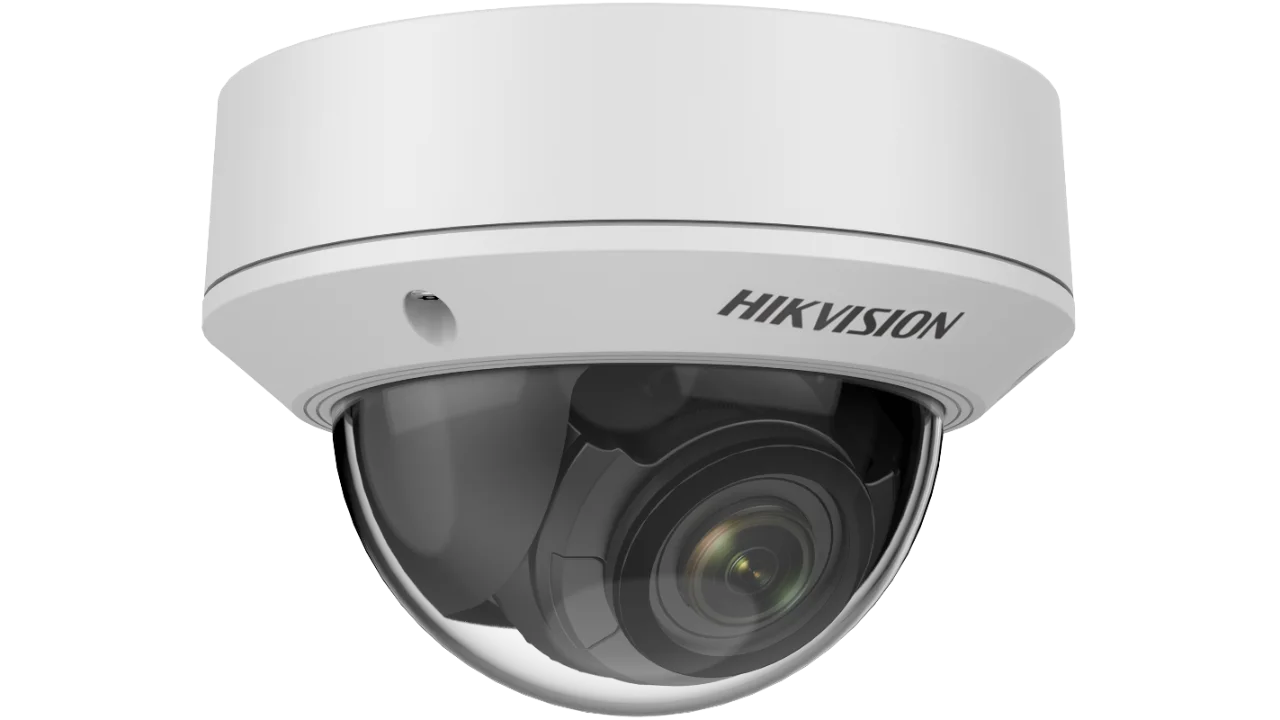

Hikvision DS-2CD1753G0-IZ (5mp indoor dome motorized)

Product Model: DS-2CD1753G0-IZ

5 MP Varifocal Dome Network Camera

• High quality imaging with 5 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting due to 120 dB WDR
• Up to 256 GB memory card slot for storage
• 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
• Water and dust resistant (IP67) and vandal proof (IK10)
• EXIR 2.0: advanced infrared technology with long IR range

• Camera
• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Max. Resolution: 2560 × 1920
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355°

• Lens
• Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV: 2.8 to 12 mm: horizontal FOV 96° to 29°, vertical FOV 69° to 22°, diagonal FOV 131° to 37°
• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: F1.6

• Illuminator
• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• IR Wavelength: 850 nm

• Video
• Main Stream: 50 Hz: 20 fps (2560 × 1920) 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1920) 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression: Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main profile
• Region Of Interest (ROI): 1 fixed region for main stream

• Audio
• Audio Compression: -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate: -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
• Audio Sampling Rate: -S: 8 kHz/16 kHz
• Environment Noise Filtering: -S: Yes

• Network
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface, ISAPI
• User/Host: Up to 32 users. 3 levels: administrator, operator and user 3 user levels: administrator, operator, and user
• Client: iVMS-4200, Hik-Connect
• Web Browser: Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
• DS-2CD1753G0-IZ

• Image
• Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch: Auto, Schedule, Day, Night
• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, 3D DNR

• Interface
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB
• Audio: -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm: -S: 1 input,1 output (max. 12 VDC, 30 mA)
• Reset Key: Yes

• Event
• Basic Event: Motion detection, video tampering, exception
• Linkage: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture

• General
• Power: 12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
• Dimension: Ø141 mm × 99.9 mm (Ø5.6″ × 3.9″)
• Package Dimension: 140 mm × 140 mm × 154 mm (5.5″ × 5.5″ × 6.1″)
• Approx. 825 g (1.8 lb.)
• With Package Weight: Approx. 1080 g (2.6 lb.)
• DS-2CD1753G0-IZ
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: English, Ukrainian
• General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

• Approval
• EMC: FCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC VoC: ICES-003: Issue 7; KC: KN 32: 2015, KN 35: 2015
• Safety: UL: UL 62368-1; CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017; BIS: IS 13252(Part 1):2010/ IEC 60950-1: 2005
• Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
• ProtectionIP67: IEC 60529-2013, IK10: IEC 62262:2002
