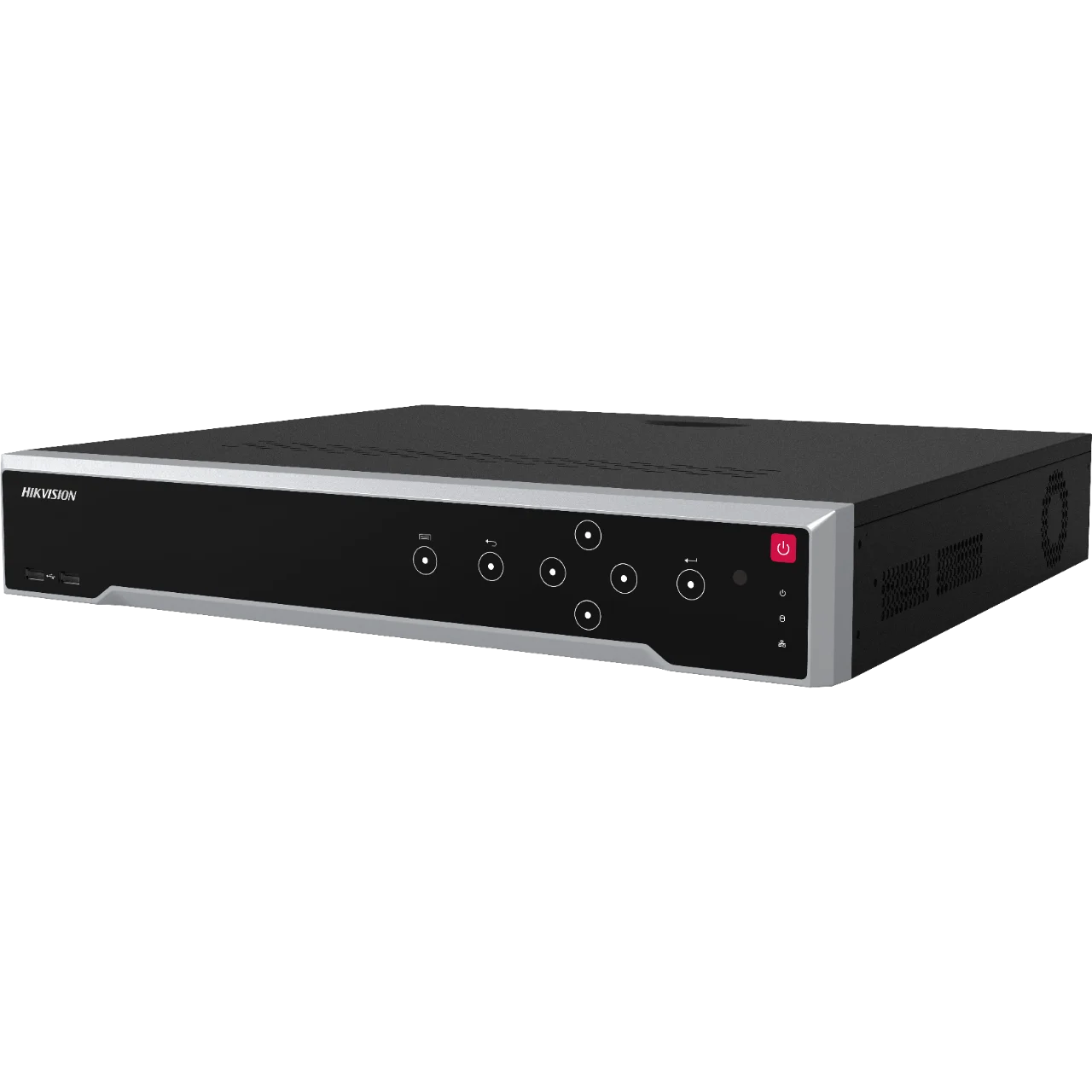

Product Model: DS-7716NI-K4/16P
16-ch 1.5U 16 PoE 4K NVR
- Up to 16-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch @ 8MP or 4-ch @ 4MP or 8-ch @ 1080P decoding capacity
- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 4 HDDs for continuous video recording
- Plug & Play with 16 Power-over-Ethernet(PoE) interfaces
- Up to 160 Mbps incoming bandwidth
- Video And Audio
- IP Video Input: 16-ch
- Incoming Bandwidth: 160 Mbps
- Outgoing Bandwidth: 160 Mbps
- HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
- Video Output Mode: HDMI/VGA independent output
- Decoding
- Decoding Format: H.265/ H.265+/H.264/H.264+
- Recording Resolution: 12MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback: 16-ch
- Decoding Capability: 1-ch@12MP (30fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
- Stream Type: Video, Video & Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722/G.726
- Network
- Remote Connection: 64-ch
- Network Protocol: TCP/IP, DHCP, IPv4, Hik-Connect , DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- PoE
- Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power: ≤ 200 W
- Standard: IEEE 802.3 af/at
- Auxiliary Interface
- Serial Interface: 2 RS-485 (half-duplex), 1 RS-232
- SATA: 4 SATA interfaces
- Capacity: Up to 10TB capacity for each HDD
- Alarm In/Out: 16/4(16/9 is optional)
- USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- General
- Power Supply: 100 to 240 VAC, 50 to 60Hz
- Consumption: ≤ 20 W (without enabling PoE and HDD)
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10 to 90 %
- Dimension (W × D × H): 445 × 400 × 71 mm ( 17.5″× 15.7″ × 2.8″)
- ≤ 5 kg (11lb.)
| Brand | Hikvision |
| Status | Brand New |
| Model Name/Number | DS-7716NI-K4/16P |
| Type | NVR |
| Model Description | 16 channel NVR poe, 4 sata slot |
| IP Video Input | 16-ch |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
