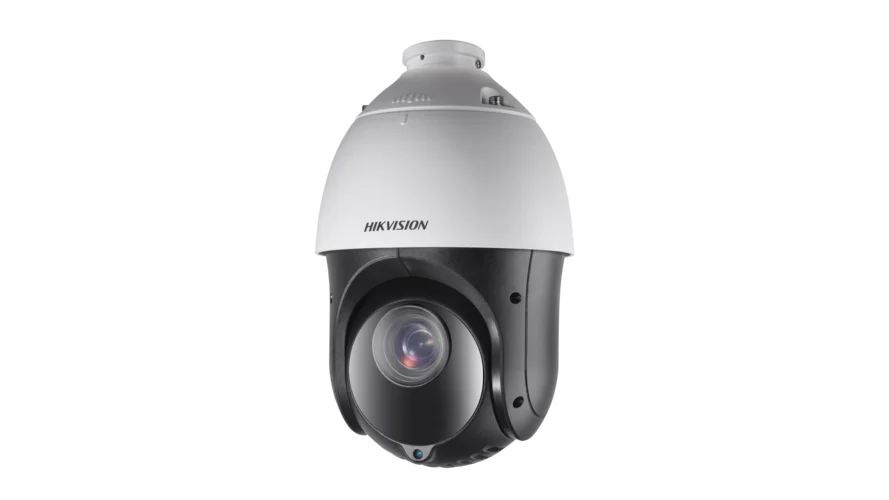

Hikvision DS-2AE4225TI-D (2mp PTZ 25x zoom with wall mount)

Product Model: DS-2AE4225TI-D

4-inch 2 MP 25X Powered by DarkFighter IR Analog Speed Dome

• High quality imaging with 2 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Clear imaging against strong back lighting due to 120 dB WDR technology
• Pan and tilt ability enables camera to monitor zones of interest
• 25 × optical zoom allows for closer viewing of subjects in expansive areas
• Up to 100 m IR range ensures safety at night
• Water and dust resistant (IP66)

• Camera
• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Max. Resolution: 1920 × 1080
• Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR
• Shutter Speed: PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s
• Day & Night: IR cut filter
• Zoom: 25× optical, 16 × digital

• Lens
• Focal Length: 4.8 mm to 120 mm, 25 × optical
• FOV: Horizontal FOV: 57.6° to 2.5° (wide to tele)
• Focus: Auto, semi-auto, manual
• Aperture: F1.6 to F3.5
• Zoom Speed: Approx. 3.2 s (optical, wide to tele)

• Illuminator
• Supplement Light Type: IR
• Supplement Light Range: Up to 100 m

• PTZ
• Movement Range (Pan): 360° endless
• Movement Range (Tilt): -15° to 90° (auto flip)
• Pan Speed: Pan manual speed: 0.1° to 80°/s Pan preset speed: 80°/s
• Tilt Speed: Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s
• Proportional Pan: Rotation speed can be adjusted automatically according to zoom multiples
• Presets: 256
• Patrol Scan: 10 patrols, up to 32 presets for each patrol
• Pattern Scan: 5 patterns, record time over 10 minutes for each scan
• Park Action: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
• PTZ Status Display: Yes
• Scheduled Task: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
• Power-Off Memory: Yes

• Video
• Frame Rate: 50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080)

• Network
• Protocols: UTC protocol (or HIKVISION-C protocol in previous DVR)

• Image
• Image Settings: AGC, white balance
• Wide Dynamic Range (WDR): ≥ 120 dB
• Image Stabilization: EIS
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 8 programmable privacy masks
• Regional Focus: Yes

• Interface
• Video Output: Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
• RS-485: Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol

• General
• Power: 12 VDC, max. 20 W (IR: 7 W)
• Dimension: Ø 164.5 × 295 mm (Ø 6.47″ × 11.61″)
• Operating Condition: -30° C to 65° C (-22° F to 149° F). Humidity 90% or less
• Language: English

• Approval
• Protection: IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
