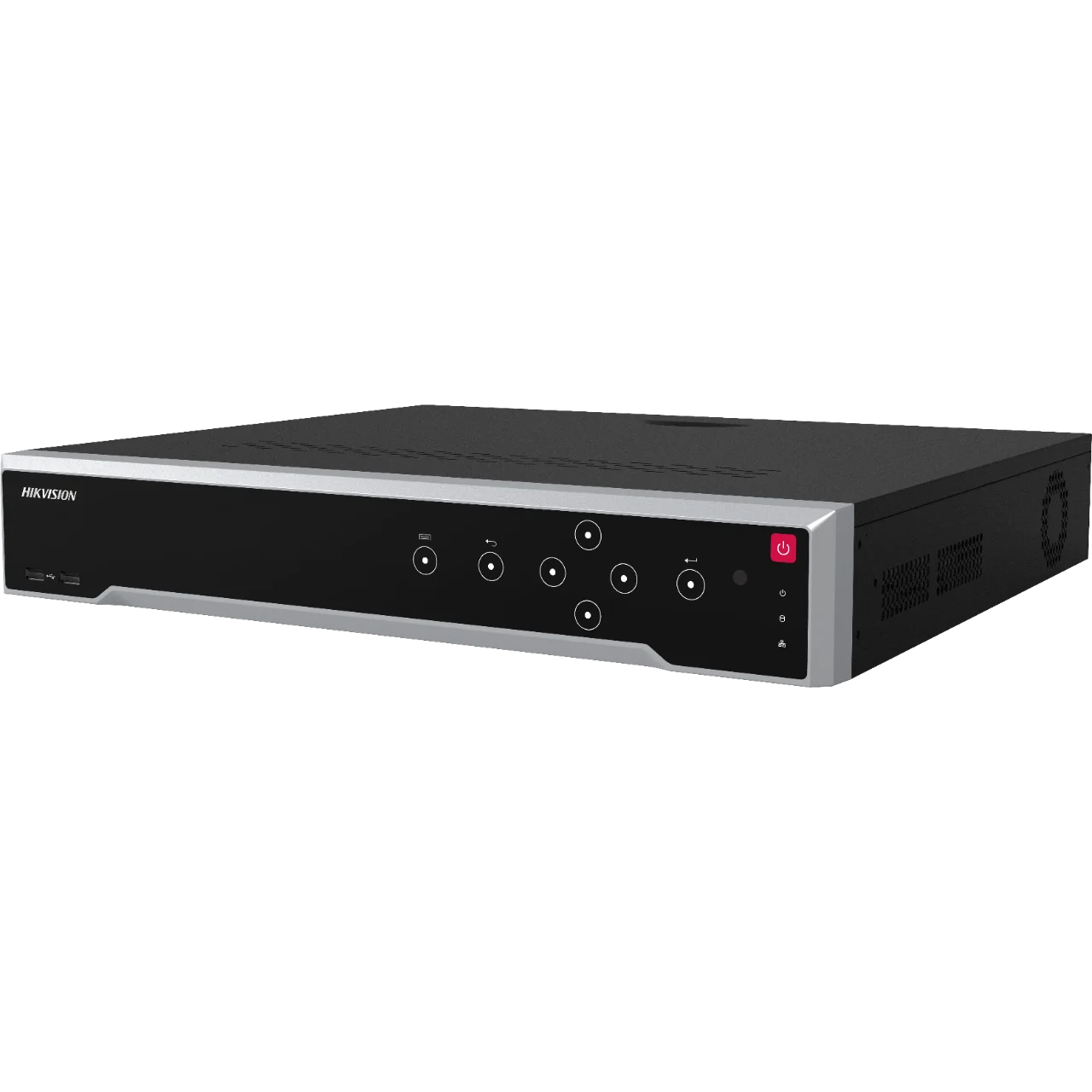

Hikvision DS-7716NI-K4 (16 channel NVR non poe, 4 sata slot) 4K

Product Model: DS-7716NI-K4

16-ch 1.5U 4K NVR

• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 2-ch@8 MP/4-ch@4 MP/8-ch@1080p decoding capacity
• Up to 160 Mbps incoming bandwidth

• Video And Audio
• IP Video Input: 16-ch
• Incoming Bandwidth: 200 Mbps
• Outgoing Bandwidth: 160 Mbps
• HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output Mode: HDMI/VGA independent output
• CVBS Output: N/A
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Audio Input: 1-ch, RCA ( 2.0 Vp-p, 1 KΩ)

• Decoding
• Decoding Format: H.265/H.265+/H.264+/H.264/MPEG4
• Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback: 16-ch
• Decoding Capability: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p(30 fps)
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw/G.711alaw/G.722/G.726

• Network
• Remote Connection: 128-ch
• Network Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
• Network Protocol: TCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

• Auxiliary Interface
• SATA: 4 SATA interfaces
• Capacity: Up to 10 TB capacity for each HDD
• Serial Interface: 2 RS-485 (half-duplex), 1 RS-232
• USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out: 16/4 (16/9 is optional)
• Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
• DC 12V: 12 VDC, 1 A power output

• General
• Power Supply: 100 to 240 VAC, 50 to 60Hz
• Consumption: ≤ 20 W (without HDD)
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10 to 90 %
• Dimension (W × D × H): 445 × 400 ×71 mm ( 17.5″× 15.7″ × 2.8″)
• ≤ 5 kg (without HDD, 11 lb.)

• Certification
• FCC: Part 15 Subpart B, ANSI C63.4-2014
• CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017

Get full details from Manufacturer Website:

https://www.hikvision.com/en/products/IP-Products/Network-Video-Recorders/Pro-Series/DS-7716NI-K4
